Non-slip Orange Peel Epoxy Flooring

Due to the frequent entry and exit of vehicles in underground parking lots, in order to avoid serious wear and tear of the ground, it is required to lay anti-skid and wear-resistant floor paint. Epoxy orange peel anti-skid floor paint is different from other ordinary epoxy floor paint products. The surface of its finished product is like ripples on the lake, with clear and beautiful texture and has the function of increasing resistance and improving anti-skid performance.

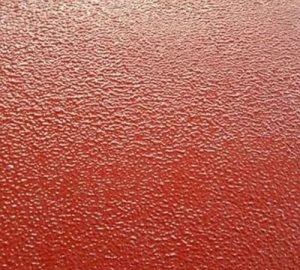

Epoxy resin orange peel anti-skid floor is made of epoxy resin and curing agent and then added with an appropriate amount of filler. The requirements for anti-skid properties of the ground in different occasions can be met by selecting fillers with different properties. Because its texture is a bit like the texture of orange peel, it is named orange peel (orange peel) floor paint.

Performance Characteristics

Epoxy textured surface, textured surface, easy to clean and has good anti-slip effect.

The textured surface layer can effectively reduce car driving noise and reduce vibration and noise.

The coating film is dense, oil-proof and waterproof, which can effectively prevent items in the venue from getting damp and mildewed.

The coating film has good hardness, good wear resistance and scratch resistance, and has a long service life.

The body’s compression resistance is greater than 60Mpa, which exceeds the compressive strength of concrete and is suitable for frequent vehicle travel.

The high-penetration epoxy primer can penetrate less than 10mm into the concrete and is integrated with the concrete to provide excellent adhesion.

The paint film has high fullness and adjustable color, meeting decorative requirements and beautifying the living environment.

Scope of Application

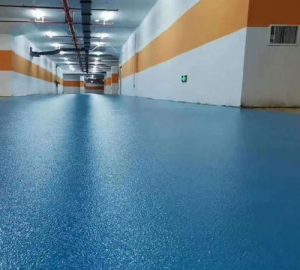

It is widely used in protective coating on concrete surfaces of various buildings and all floors that require anti-skid requirements. Because of its good anti-slip performance, it is more suitable to be applied to ramps in underground parking lots, sidewalks, shopping malls and exhibition halls with large flow of people, factories and canteens with anti-slip requirements, etc.

Construction Process

The difference between the construction process of epoxy orange peel floor paint and ordinary epoxy floor paint lies in the last process. First, apply a textured finsh topcoat, and roll it on the surface of the epoxy floor with a roughened roller to form a non-slip epoxy orange peel floor.
Epoxy orange peel floor process: plain floor polishing, primer layer construction, epoxy mortar layer, epoxy putty layer, finish topcoat layer construction
1. Plain ground treatment: clean and polish the construction site.
2. Primer layer construction: mix epoxy resin and curing agent in the correct proportion and roll or apply it. The primer hardening time is more than 8 hours.
3. Epoxy mortar layer: mix epoxy resin and curing agent and other main agents according to the correct proportion, add appropriate amount of quartz sand and powder, stir evenly, and use a knife to scrape the ground. After hardening, the mortar layer is polished and cleaned.
4. Epoxy putty layer: Mix the main agent and curing agent in the correct proportion, add an appropriate amount of powder after mixing, stir evenly, and use a trowel to evenly scrape the ground. The hardening time of the epoxy putty layer is more than 8 hours.
5. Construction of topcoat layer: Mix the main agent and curing agent in the correct proportion, apply evenly first, and then use a pattern roller to roll the topcoat
6. Topcoat maintenance: pedestrians can walk in 48 hours and loads can be carried in seven days (when the temperature is below 25 degrees Celsius, the maintenance period should be appropriately extended)
Epoxy orange peel floor has multiple properties such as environmental protection, anti-slip, and wear resistance, and is increasingly widely used in various ground places.
