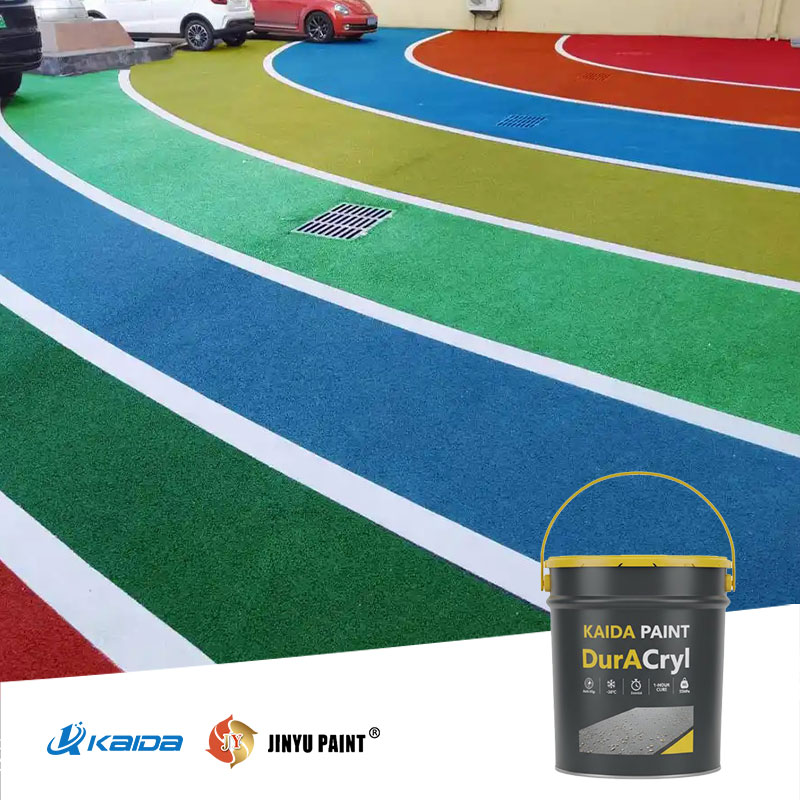

DurAcryl™ Water-based Traffic Paint

Description

Product Overview

DurAcryl™ Water-based traffic paint is a premium-quality waterborne marking coating engineered specifically for modern road infrastructure and pavement delineation applications. This advanced water based traffic paint utilizes cutting-edge acrylic polymer technology to deliver exceptional adhesion, durability, and visibility across diverse surface types including asphalt, concrete, and existing pavement markings. The formulation features a unique dual-stage curing mechanism where low-molecular-weight components achieve deep substrate impregnation before cross-linking, creating a molecular bond that embeds itself into the surface structure for anchoring strength that conventional coatings cannot match. This waterborne traffic paint system combines economic efficiency, environmental responsibility, superior retroreflectivity, workplace safety, application versatility, and long-term durability into a single integrated solution. Designed to meet the demanding requirements of transportation authorities, road construction contractors, and facility managers, DurAcryl™ provides, long-lasting markings that enhance traffic safety while minimizing disruption to road users through rapid drying and exceptional performance longevity.

Frequent Repaints, Extended Closures, and Failing Visibility—Don’t Let Pavement Marking Inefficiencies Slow Down Your Operations.

For Transportation Engineers and Public Works Departments:

• Frequent reapplication cycles drain maintenance budgets and create repetitive workflow disruptions
• Solvent-based coatings raise concerns about worker safety, environmental compliance, and community impact
• Premature marking failure due to poor adhesion, especially on asphalt surfaces with oil migration issues
• Extended road closures for marking application create traffic congestion and public complaints
• Inconsistent nighttime visibility compromising road safety metrics

For Road Construction and Marking Contractors:

• Weather dependency limiting application windows and delaying project completion
• Equipment clean-up requiring hazardous solvents that increase operational costs and safety risks
• Tracking problems when lines are reopened to traffic before complete curing
• Difficulty achieving consistent film thickness and bead embedment for optimal retroreflectivity
• Balancing fast project turnover with long-term performance warranties

For Facility and Airport Operations Managers:

• Parking garage markings deteriorating rapidly due to vehicle turning abrasion and chemical exposure
• Airport runway and taxiway markings requiring exceptional durability and visibility under extreme conditions
• Industrial facility floor markings needing resistance to forklift traffic and chemical spills
• Pedestrian crossing markings that must maintain high visibility despite constant foot traffic
• Environmental compliance requirements for low-VOC materials in sensitive locations

Industry-Specific Application Demands

Highways and Freeways: Markings must withstand high-speed traffic, tire abrasion, and weather extremes while maintaining retroreflectivity for nighttime and wet-weather visibility.

Urban Roads and Intersections: Stop bars, crosswalks, and turn lanes face concentrated wear from turning vehicles and require exceptional durability at critical safety points.

Parking Facilities: Decks, ramps, and parking space lines need resistance to tire scuffing, oil drips, and cleaning chemicals while maintaining visibility under variable lighting conditions.

Airport Pavements: Runway designations, taxiway centerlines, and apron markings demand extreme durability, precise application, and compatibility with aircraft fuel and de-icing fluids.

Industrial and Warehouse Facilities: Aisle markings, safety zones, and equipment positioning lines require resistance to heavy forklift traffic and chemical exposure.

Product Solutions & Technical Features

Advanced Polymer Technology

DurAcryl™ Water-based traffic paint incorporates 100% acrylic emulsion polymer technology that delivers superior performance compared to conventional waterborne formulations. The resin system provides:

Deep Substrate Penetration: The reactive impregnation mechanism allows low-viscosity components to penetrate porous surfaces before cross-linking, creating a mechanical interlock that achieves adhesion strength comparable to embedded systems. This technology ensures the coating becomes part of the substrate rather than simply sitting on top of it.

Fast Curing Chemistry: The advanced polymer system accelerates both surface dry and through-dry stages, enabling rapid reopening to traffic even under challenging humidity conditions. Independent testing demonstrates that DurAcryl™ achieves no-track times comparable to fast-dry solventborne paints while maintaining the environmental benefits of waterborne technology.

Cross-Linked Durability: The molecular cross-linking reaction creates a three-dimensional polymer network that delivers exceptional cohesion, abrasion resistance, and chemical durability. This structural integrity ensures the marking maintains its integrity under continuous traffic loading.

Performance Characteristics

Mechanical Properties:

• Superior abrasion resistance exceeding 100mg loss per 1000 cycles (Taber abrasion test)
• Excellent adhesion to asphalt, concrete, and existing markings (5B rating per ASTM D3359)
• Flexibility to accommodate substrate movement without cracking or delaminating
• Impact resistance to withstand tire scuffing and debris strike

Optical Performance:

• Initial retroreflectivity exceeding 300 mcd/m²/lx with proper glass bead application
• Enhanced glass bead retention through optimized wet-film rheology that positions beads for maximum light return
• Color retention ensuring white and yellow markings remain vibrant throughout service life
• Wet-night visibility through bead chemistry optimized for low-angle light return

Environmental Resistance:

• UV stability preventing yellowing and chalking in exposed applications
• Fuel and oil resistance for areas subject to vehicle drips and spills
• De-icing chemical tolerance for winter maintenance zones
• Freeze-thaw stability of liquid paint for extended storage and application seasons

Physical Properties

Color Availability

DurAcryl™ Water-based traffic paint is available in standard traffic colors including:

• Federal White (FHWA White)
• Federal Yellow (FHWA Yellow)
• Federal Blue (for handicapped parking)
• Federal Red (for fire lanes)
• Custom colors available upon request

All formulations utilize non-toxic pigments meeting state and federal environmental requirements.

Technical Specifications & Compliance

Industry Standards Compliance

DurAcryl™ Water-based traffic paint meets or exceeds the requirements of:

AASHTO M 248: Standard Specification for Waterborne Traffic Paints
ASTM D711: Standard Test Method for No-Pick-Up Time of Traffic Paint
ASTM D713: Standard Practice for Conducting Road Service Tests on Traffic Paint
ASTM D969: Standard Practice for Laboratory Evaluation of Weathering of Traffic Paint
40 CFR 261.24: EPA Toxicity Characteristic Compliance
LEED v4.1: Low-Emitting Materials Credit Contribution

Performance Verification

Independent laboratory testing confirms that DurAcryl™ achieves:

• Dry-to-No-Pickup Time: Under 10 minutes at 77°F/50% RH, enabling rapid lane reopening
• Retroreflectivity Retention: 80% retention after 12 months of highway traffic exposure
• Abrasion Resistance: Exceeds 3 cycles in wet abrasion testing per ASTM D2486
• Accelerated Weathering: 1000 hours with no visible chalking or color change (QUV per ASTM G154)

Quality Assurance

Each batch of DurAcryl™ Water-based traffic paint undergoes rigorous quality control testing including viscosity verification, solids content analysis, pH measurement, and application performance validation. Certificate of Compliance documentation is available for all shipments, including batch-specific test data.

Application Areas

Transportation Infrastructure

Highways and Freeways: Long-line applications requiring high-speed application, rapid drying, and extended durability for lane delineation, edge lines, and center markings. The fast-curing formulation minimizes traffic disruption during maintenance operations.

Urban and Residential Roads: Stop bars, crosswalks, turn arrows, and lane markings for city streets where work windows are limited and public inconvenience must be minimized. The low-odor formulation is ideal for sensitive urban environments.

Rural Roads: Centerlines and edge lines on lower-volume roads where maintenance cycles must be extended due to remote locations and limited access for restriping crews.

Specialized Facilities

Airports: Runway markings, taxiway centerlines, threshold markings, and apron designations requiring exceptional durability, fuel resistance, and compatibility with airfield lighting systems. The formulation meets FAA specifications for airport marking applications.

Parking Structures: Space lines, directional arrows, handicap symbols, and pedestrian walkways in parking garages where vehicle turning abrasion, concrete surface conditions, and lighting limitations demand specialized coating performance.

Industrial Facilities: Aisle markings, safety zones, equipment staging areas, and material handling routes in warehouses and manufacturing plants requiring resistance to forklift traffic, chemical spills, and cleaning protocols.

Community and Recreational Areas

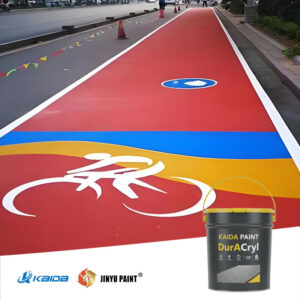

Bike Lanes: Green-colored bike lane applications where color stability, skid resistance, and compatibility with urban design aesthetics are priorities. The waterborne formulation supports the growing demand for sustainable transportation infrastructure.

Pedestrian Crossings: High-visibility crosswalk markings requiring enhanced durability at intersections where pedestrian traffic and vehicle turning movements concentrate wear.

School Zones: Pavement markings for school crossing areas where low-odor, low-VOC formulations address community health concerns while maintaining safety performance.

Parking and Access Areas

Parking Lots: Space striping, directional arrows, and fire lane markings for commercial parking facilities where cost-effective, durable markings support efficient traffic management and property aesthetics.

Parking Garages: Multi-level parking structure markings requiring resistance to turning abrasion, concrete surface adhesion, and compatibility with waterproofing membranes and sealers.

Loading Docks: Truck staging areas, loading zones, and safety markings requiring exceptional abrasion resistance and visibility for heavy vehicle operations.

Application Guidelines

Surface Preparation

Proper surface preparation is essential for achieving optimal adhesion and service life of water based traffic paint:

1. Surface Inspection: Evaluate the pavement for cracks, deterioration, oil contamination, or moisture issues that could affect coating performance.
2. Cleaning: Remove all dust, dirt, loose particles, oil, grease, and other contaminants using power sweeping, air blasting, or mechanical cleaning methods.
3. Oil Spot Treatment: Pre-treat oil-contaminated areas with appropriate cleaners or primers to ensure proper wetting and adhesion.
4. Moisture Check: Verify that surface and ambient conditions meet application specifications with no visible moisture and temperature at least 5°F above dew point.
5. Existing Markings: For remarking applications, ensure existing markings are sound and well-adhered; remove loose or failing material before application.

Application Equipment

DurAcryl™ Water-based traffic paint can be applied using standard pavement marking equipment:

Truck-Mounted Systems:

• Airless spray equipment with appropriate tip sizes (0.015-0.023 inches)
• Pressure ranges of 2000-3000 psi for proper atomization
• Bead dispensers calibrated for consistent glass bead application rates of 6-10 lbs per gallon of paint
• Gun height and angle adjusted for proper line width and edge definition

Walk-Behind Equipment:

• Self-propelled striping machines for parking lots and urban applications
• Hand-held spray equipment for touch-up and small areas
• Stencils for symbols and legends requiring precise application

Equipment Clean-up:

• Clean equipment immediately after use with soap and water
• Remove all solvent-based residues before introducing waterborne materials to prevent contamination
• Flush systems thoroughly between color changes to prevent cross-contamination

Application Conditions

For optimal results, apply DurAcryl™ Water-based traffic paint under the following conditions:

Temperature: Surface and air temperature above 40°F and rising; avoid application when temperatures are falling toward freezing
Humidity: Below 80% relative humidity for best drying performance; allow extended dry time in high-humidity conditions
Wind: Low wind conditions to maintain line definition and bead placement
Surface: Clean, dry, and free from moisture or frost
Forecast: No rain expected for minimum 2 hours after application

Application Procedure

1. Mixing: Agitate paint thoroughly before and during application to maintain uniform solids distribution. Do not thin unless specifically recommended for equipment requirements.
2. Stripe Layout: Measure and mark stripe positions according to project specifications, ensuring proper width, spacing, and alignment.
3. Paint Application: Apply at recommended wet film thickness of 15-20 mils (375-500 microns) for standard traffic line applications -9. Adjust application parameters to achieve specified dry film thickness of 10-15 mils.
4. Glass Bead Application: Apply reflective glass beads immediately after paint application at rates specified by project requirements (typically 6-10 lbs per gallon of paint). Ensure beads are embedded but not submerged for optimal retroreflectivity.
5. Traffic Control: Maintain traffic control until paint achieves no-track condition (typically 5-15 minutes depending on conditions). Verify complete cure before reopening to traffic.
6. Inspection: Inspect completed markings for line width, thickness, color uniformity, edge definition, and retroreflectivity. Address any deficiencies immediately.

Curing and Opening to Traffic

DurAcryl™ Water-based traffic paint achieves rapid dry through the following stages:

Surface Dry: Paint surface becomes dry to light touch within 3-5 minutes under favorable conditions
No-Pickup: Paint resists tracking by vehicle tires within 5-15 minutes depending on temperature and humidity
Through-Dry: Complete film cure within 24-48 hours, achieving full property development

The rapid drying performance is particularly valuable when working under marginal conditions of high humidity or low temperatures, where conventional waterborne paints may experience extended dry times.

Frequently Asked Questions

How long does water based traffic paint last?

DurAcryl™ Water-based traffic paint typically provides 12-24 months of service life on high-traffic highways and 2-4 years on lower-volume roads, depending on traffic volume, climate conditions, and surface type. The acrylic polymer technology delivers exceptional durability through superior wear resistance and glass bead retention. Factors affecting service life include average daily traffic counts, percentage of truck traffic, winter maintenance practices, and regional climate conditions. For parking lot applications, expect 1-3 years of service life depending on traffic intensity and maintenance practices.

Water based vs solvent based traffic paint: which is better?

Water based traffic paint offers several advantages over solvent-based alternatives: lower VOC content for environmental compliance and worker safety, non-flammable formulation reducing storage and transport hazards, water clean-up eliminating solvent disposal costs, and comparable or superior durability through advanced polymer technology. Solvent-based paints may offer advantages in extremely low-temperature applications or where rapid recoat is essential, but modern waterborne formulations like DurAcryl™ have closed the performance gap while providing significant environmental and safety benefits.

Can water based traffic paint be used on asphalt?

Yes, DurAcryl™ Water-based traffic paint is specifically formulated for excellent adhesion to asphalt surfaces. The impregnation technology allows the coating to penetrate the asphalt matrix, creating a mechanical bond that resists the oil migration issues that can cause adhesion failure in conventional markings. The formulation is compatible with both new asphalt (allow 30 days cure before marking) and aged asphalt surfaces.

How long does water based traffic paint take to dry?

DurAcryl™ Water-based traffic paint typically achieves no-track dry in 5-15 minutes under standard application conditions of 77°F and 50% relative humidity. Higher humidity extends dry time, while lower humidity, higher temperatures, and increased air flow accelerate drying. The fast-dry acrylic emulsion technology ensures rapid film development even under marginal conditions, minimizing traffic disruption during maintenance operations.

How thick is water based road marking paint?

Water based traffic paint is typically applied at wet film thicknesses of 15-20 mils (375-500 microns), yielding dry film thicknesses of 10-15 mils (250-375 microns) after water evaporation. High-build formulations may be applied at greater thicknesses for extended durability or enhanced retroreflectivity. Proper film thickness is essential for achieving specified performance, including glass bead retention and wear resistance.

Is water based traffic paint reflective?

Water based traffic paint becomes reflective through the application of glass beads onto the wet paint film. DurAcryl™ is formulated with optimized rheology that properly positions glass beads for maximum light return while ensuring adequate bead retention throughout the service life. The combination of quality paint and appropriate bead selection delivers initial retroreflectivity exceeding 300 mcd/m²/lx and sustained performance through superior bead anchorage.

What is waterborne acrylic traffic paint?

Waterborne acrylic traffic paint is a pavement marking coating where acrylic polymer serves as the primary binder, dispersed in water rather than organic solvents -8. The acrylic resin provides adhesion, durability, and weather resistance while water serves as the carrier that evaporates after application. These formulations offer the performance characteristics of traditional solvent-borne paints with significantly reduced environmental impact and improved worker safety.

How to apply water based road marking paint?

Apply water based road marking paint using airless spray equipment calibrated for proper pressure and tip size. Surface must be clean, dry, and properly prepared. Apply at specified wet film thickness, immediately followed by glass bead application at rates of 6-10 lbs per gallon of paint. Maintain traffic control until paint achieves no-track condition, typically 5-15 minutes. Clean equipment promptly with soap and water.

What is the difference between water based and thermoplastic road marking?

Water based traffic paint is a liquid coating applied at ambient temperatures that dries through water evaporation and coalescence, offering rapid application and quick return to traffic. Thermoplastic markings are heated to 400°F and applied as molten material that cools to form a thick film, providing exceptional durability and service life of 3-6 years but requiring specialized equipment and longer traffic control for cooling. Waterborne paints offer lower application cost, faster project completion, and greater flexibility for maintenance cycles, while thermoplastics provide extended service life for high-wear areas.

Can water based traffic paint be used on concrete?

Yes, DurAcryl™ Water-based traffic paint provides excellent adhesion to concrete surfaces through the impregnation mechanism that penetrates the porous concrete matrix before cross-linking. The formulation accommodates the alkaline nature of concrete surfaces and resists the whitening that can occur with some coating systems. Proper surface preparation, including removal of curing compounds and surface contaminants, is essential for optimal adhesion to concrete.

Quality Certifications & Industry Recognition

Regulatory Compliance

DurAcryl™ Water-based traffic paint is manufactured in facilities certified to ISO 9001:2015 quality management standards. The formulation complies with:

• EPA Method 24: VOC content verified below regulatory limits
• 40 CFR 261.24: Non-hazardous waste classification for disposal
• LEED v4.1: Contributes to Low-Emitting Materials credits
• Buy America/BABA: Compliant with domestic preference requirements where applicable

Performance Validation

Extensive field testing and laboratory evaluation confirm that DurAcryl™ meets or exceeds the performance requirements of transportation authorities nationwide. The formulation has been validated through:

• AASHTO National Transportation Product Evaluation Program (NTPEP) testing for durability and retroreflectivity
• Independent laboratory verification of physical properties and chemical resistance
• Field service evaluations on highways, airports, and industrial facilities
• Accelerated weathering studies confirming long-term color and gloss retention

Industry Partnerships

KAIDA PAINT maintains strategic relationships with leading raw material suppliers including Dow Chemical Company, ensuring access to the latest polymer technologies for continuous product improvement. These partnerships enable us to incorporate advanced resin systems like FASTRACK™ technology for enhanced drying and durability.

Why Choose KAIDA PAINT

Company Overview

KAIDA PAINT is a premier manufacturer of high-performance industrial coatings with over 15 years of experience serving the transportation infrastructure market. Our state-of-the-art production facility utilizes advanced manufacturing technologies to produce consistent, high-quality water based traffic paint that meets the demanding requirements of modern road marking applications. As both a manufacturer and a contractor support partner, we understand the complete project lifecycle from material specification through application and performance validation.

Our Commitment

Quality Excellence: Every batch of DurAcryl™ undergoes comprehensive quality testing to ensure consistent performance. Our ISO 9001:2015 certified quality management system provides traceability and accountability throughout the manufacturing process.

Technical Expertise: Our team of coating chemists and application specialists brings decades of combined experience in pavement marking technology. We provide technical support for project specification, application troubleshooting, and performance optimization.

Sustainability Leadership: KAIDA PAINT is committed to developing environmentally responsible coating solutions that reduce VOC emissions, minimize worker exposure, and support sustainable infrastructure development. Our waterborne technology platform represents our dedication to environmental stewardship without compromising performance.

Customer Partnership: We view ourselves as more than a material supplier—we are your partner in successful project completion. From pre-bid technical consultation to on-site application support and post-project analysis, we provide the expertise and resources to ensure your marking projects succeed.

Services We Offer

Manufacturing: Premium water based traffic paint produced in our ISO-certified facility with rigorous quality control and batch-to-batch consistency.

Technical Support: Application engineering, specification assistance, and on-site troubleshooting by experienced coating professionals.

Contractor Training: Comprehensive training programs for marking contractors on equipment setup, application techniques, and quality control procedures.

Project Consultation: Pre-project site evaluation, material selection guidance, and performance forecasting for optimal results.

Partner with KAIDA PAINT for Your Pavement Marking Needs

Whether you are a transportation agency managing highway maintenance, a contractor seeking reliable material supply and technical support, or a facility manager responsible for parking and industrial markings, KAIDA PAINT has the expertise and products to meet your requirements.

Why Partner With Us:

• Premium water based traffic paint manufactured to the highest quality standards
• Comprehensive technical support from application through performance validation
• Sustainable, low-VOC formulations meeting regulatory requirements
• Reliable supply chain with consistent product quality
• Industry expertise gained through decades of collective experience

Contact our technical sales team today to discuss your project requirements, request samples, or schedule a consultation with one of our coating specialists. Let KAIDA PAINT help you achieve, durable, high-performance markings that enhance safety and reduce lifecycle costs.

KAIDA PAINT – Quality Coatings for Lasting Infrastructure
