DurAcryl™ Bridge Deck Waterproofing System

Description

Product Overview

The DurAcryl™ bridge deck waterproofing system is a high-performance, liquid-applied methacrylate resin waterproofing membrane specifically engineered for steel bridge deck protection. This advanced bridge deck waterproofing solution utilizes cold-applied chemical curing methacrylate technology to create a seamless, flexible, and durable waterproof barrier on steel substrates. The system features exceptional elasticity that follows steel plate deformation without cracking, provides outstanding durability against harsh weather conditions, and delivers superior adhesion to properly prepared steel surfaces. Designed for major infrastructure projects including long-span bridges, urban viaducts, and highway overpasses, the DurAcryl™ system provides comprehensive waterproof protection that extends the service life of the entire bridge structure while meeting the most demanding international performance standards.

Corrosion, Cracking, and Crushing Schedules—Don’t Let Bridge Waterproofing Failures Compromise Your Structure.

Bridge deck waterproofing presents unique engineering challenges that directly impact structural longevity and safety:

Steel Corrosion Risk: Steel bridge decks are highly susceptible to corrosion when exposed to moisture, deicing salts, and chloride ions. Even microscopic pinholes in waterproofing can lead to rapid structural deterioration.

Structural Movement Stress: Steel bridge decks undergo constant thermal expansion, contraction, and traffic-induced vibration. Many waterproofing materials lack the flexibility to follow this movement without cracking or debonding.

Construction Window Constraints: Bridge rehabilitation and new construction projects operate under tight schedules. Traditional waterproofing systems require extended curing times that delay subsequent paving operations.

Temperature Extremes: Bridge decks face extreme temperature variations from summer heat to winter freeze-thaw cycles, plus the thermal shock of applying hot asphalt overlay (typically 160-180°C) directly onto the waterproofing layer.

Chemical Exposure: Deicing salts, road chemicals, and environmental pollutants continuously attack the waterproofing membrane, requiring exceptional chemical resistance for long-term protection.

The DurAcryl™ Solution: Engineering Excellence for Bridge Deck Waterproofing

Advanced Methacrylate Technology

The DurAcryl™ bridge deck waterproofing system represents a significant advancement in bridge deck waterproofing material science. Based on methyl methacrylate (MMA) resin technology, this system delivers rapid curing even at low temperatures, allowing contractors to complete bridge deck waterproofing installation within hours rather than days. The two-component formulation ensures consistent quality and performance across all application conditions.

Three-Layer Protective System Architecture

The DurAcryl™ system employs a sophisticated multi-layer design for maximum protection:

1. Zed S94 Anti-Corrosion Primer Layer
Applied immediately after steel surface preparation (Sa2.5 cleanliness, 50-100μm roughness), this specialized primer provides active corrosion inhibition while creating an ideal bonding surface for subsequent layers. Application rate: 100-200g/m².

2. DurAcryl™ Methacrylate Waterproofing Membrane
The core protection layer applied in two separate coats forms a seamless, flexible membrane with minimum 2mm dry film thickness. Total application: 2500-3500g/m². The membrane maintains exceptional physical properties including tensile strength ≥11.8 MPa and elongation ≥130% at 25°C, ensuring it accommodates all steel deck movements without failure.

3. Tack Coot N2 Bonding Layer
This specially formulated adhesive creates a secure bond between the waterproofing membrane and the subsequent asphalt overlay. With rapid dry-through time (≤60 minutes at 25°C), it minimizes construction delays while providing shear strength ≥1.5 MPa for the complete pavement assembly.

Key Performance Features

Superior Mechanical Properties

• Tensile strength ≥11.8 MPa (GB/T 16777-2008)
• Elongation at break ≥130%
• Bond strength to steel ≥5.0 MPa
• Excellent flexibility at -20℃ (no cracking in 20mm bend test)

Outstanding Durability

• Chloride ion corrosion resistance verified through salt spray testing
• No blistering or delamination after accelerated aging
• UV stable formulation maintains performance over decades of service
• Resistant to deicing salts, fuels, and industrial chemicals

Rapid Construction Advantages

• Complete system installation possible in one working day
• Low-temperature cure capability (down to -10℃)
• Quick return to service minimizes project disruption
• Compatible with both conventional and polymer-modified asphalt overlays

Technical Specifications

Application Areas

The DurAcryl™ bridge deck waterproofing system is ideal for:

Major Bridge Structures: Long-span suspension bridges, cable-stayed bridges, and arch bridges requiring highest reliability

Urban Viaducts and Overpasses: City infrastructure projects with demanding construction schedules and traffic interruption constraints

Highway Bridge Rehabilitation: Replacement of failed waterproofing systems on existing bridge decks

Steel Orthotropic Decks: Complex steel plate structures requiring flexible, conformable waterproofing

Railway Bridges: Heavy-load applications requiring exceptional durability and vibration resistance

Industrial Bridge Structures: Facilities with chemical exposure or specialized operational requirements

Bridge Deck Waterproofing Installation Process

Environmental Requirements

For successful bridge deck waterproofing application, the following conditions must be met:

• Substrate surface must be dry, clean, free from oil, dust, and contaminants
• No application during rain, snow, or condensation conditions
• Ambient temperature range: -10℃ to 50℃
• Relative humidity ≤85%
• Steel plate temperature must be at least 3℃ above dew point

Step-by-Step Application

1. Surface Preparation
Grit blast to achieve Sa2.5 cleanliness with 50-100μm surface profile. Remove all rust, mill scale, and contaminants. Vacuum clean to remove all dust and debris.

2. Zed S94 Primer Application
Apply within 3 hours of surface preparation using roller coating technique. Application rate: 100-200g/m². Allow to cure (approximately 60 minutes at 10℃) before proceeding.

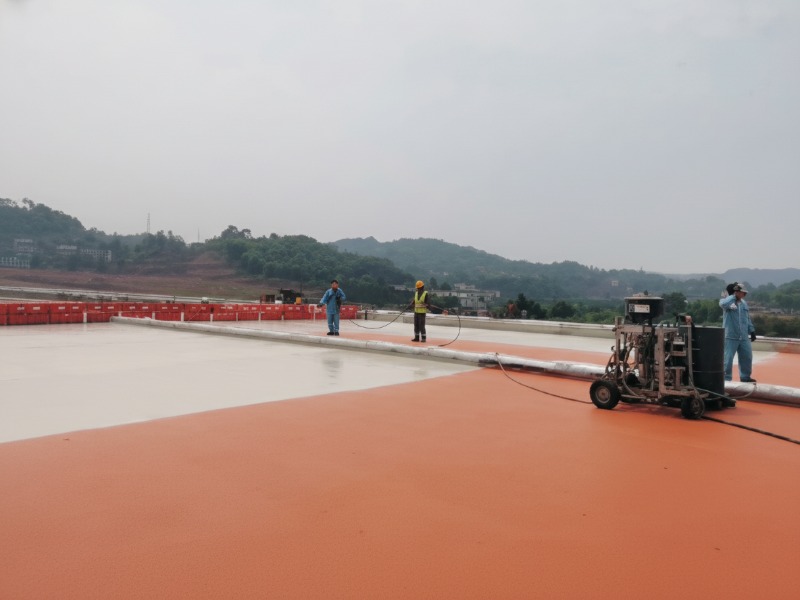

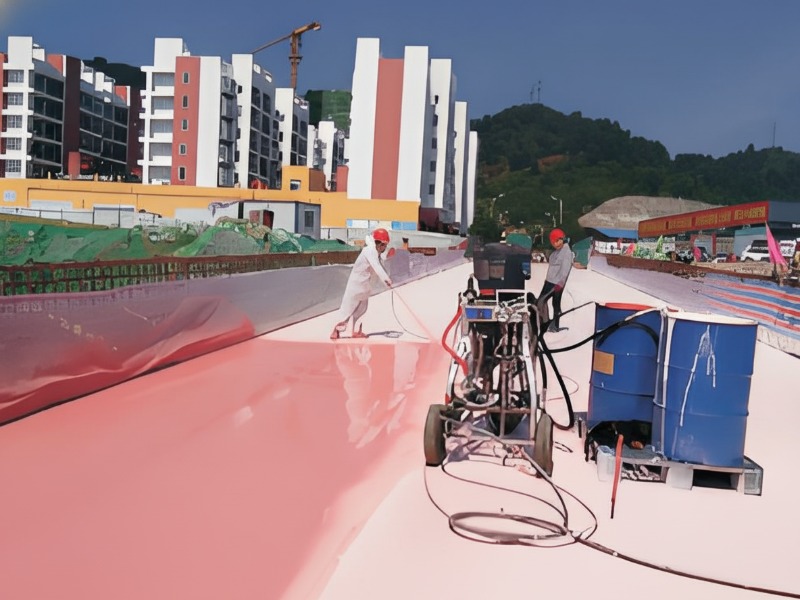

3. DurAcryl™ Waterproofing Membrane
Mix catalyst with B component thoroughly before spray application. Apply in two separate coats with total dry film thickness ≥2mm. Total application rate: 2500-3500g/m². Allow first coat to cure before applying second coat (refer to technical data sheet for temperature-dependent cure times).

4. Tack Coot N2 Bonding Layer
Apply after DurAcryl™ membrane is fully cured. Use trowel or squeegee application method. Application rate: 150-200g/m². Allow to cure before proceeding with asphalt overlay installation.

5. Asphalt Overlay
Install 30mm GA-10 high-viscosity modified asphalt lower layer followed by 40mm SMA-13 high-elastic modified asphalt upper layer. Total pavement thickness: 73mm.

Frequently Asked Questions

What is bridge deck waterproofing and why is it essential?

Bridge deck waterproofing is a protective barrier system installed on bridge decks to prevent water and chloride ions from penetrating to the structural steel. It is essential because water and deicing salts cause rapid steel corrosion, leading to structural deterioration, reduced service life, and potentially catastrophic failure. The DurAcryl™ system provides seamless, flexible protection that maintains integrity throughout the bridge’s service life.

How does methacrylate waterproofing compare to other bridge deck waterproofing materials?

Methacrylate systems like DurAcryl™ offer significant advantages over traditional alternatives. Compared to epoxy systems, methacrylate provides superior flexibility and low-temperature cure capability. Versus polyurethane, methacrylate delivers better adhesion to prepared steel and faster cure times. When compared to sheet membranes, liquid-applied methacrylate eliminates seam vulnerabilities and conforms perfectly to complex geometries. The combination of rapid cure (even at -10℃) and exceptional physical properties makes methacrylate the preferred choice for critical bridge infrastructure.

What is the typical bridge deck waterproofing cost?

Bridge deck waterproofing cost varies depending on project size, surface condition, access requirements, and specified system performance. While methacrylate systems like DurAcryl™ may have higher initial material cost compared to basic alternatives, they deliver significantly lower installed cost through rapid application, reduced labor, faster return to service, and extended service life. For accurate project pricing, contact KAIDA PAINT for a detailed quotation based on your specific requirements.

How long does bridge deck waterproofing installation take?

The complete DurAcryl™ system installation can be accomplished within one working day under suitable conditions. The methacrylate chemistry cures rapidly even at low temperatures, allowing primer application, two waterproofing membrane coats, and bonding layer application in a single shift. This rapid cure capability minimizes project disruption and reduces overall construction schedules compared to slow-curing alternatives.

How do you maintain bridge deck waterproofing systems?

Bridge deck waterproofing systems require minimal maintenance when properly installed. Regular inspection should include visual examination for any damage to the asphalt overlay, particularly at expansion joints and penetration points. The DurAcryl™ membrane itself requires no maintenance as it is protected by the asphalt wearing course. If asphalt overlay requires repair, the Tack Coot N2 bonding layer ensures excellent interlayer adhesion for long-lasting composite action.

What is the minimum temperature for DurAcryl™ application?

The DurAcryl™ system can be applied at ambient temperatures as low as -10℃, significantly extending the construction season compared to conventional waterproofing materials. This low-temperature capability is particularly valuable for winter maintenance projects and in cold climate regions. Always ensure the steel temperature remains at least 3℃ above dew point to prevent condensation during application.

How does the DurAcryl™ system perform with different asphalt overlay types?

The DurAcryl™ system is fully compatible with both conventional hot-mix asphalt and polymer-modified overlays including GA-10 high-viscosity modified asphalt and SMA-13 high-elastic modified asphalt. The Tack Coot N2 bonding layer maintains integrity even under the thermal stress of hot asphalt application (typically 160-180℃) and provides durable interlayer adhesion throughout the pavement service life. The complete assembly delivers bond strength ≥1.0 MPa and shear strength ≥1.5 MPa, ensuring composite action between deck and overlay.

Why Choose KAIDA PAINT for Your Bridge Deck Waterproofing Project

KAIDA PAINT stands at the forefront of industrial coating technology, combining advanced materials science with practical construction expertise. As both a leading bridge deck waterproofing manufacturer and experienced application contractor, we offer unparalleled value to infrastructure projects worldwide.

Comprehensive Solutions: From initial design consultation through material supply to construction supervision, KAIDA PAINT provides complete bridge deck waterproofing solutions tailored to your specific project requirements.

Technical Excellence: Our DurAcryl™ system incorporates the latest advances in methacrylate resin technology, delivering proven performance verified through independent laboratory testing and successful field applications across diverse climate conditions.

Quality Assurance: Every batch of DurAcryl™ material undergoes rigorous quality control testing to ensure consistent performance. Our technical team provides on-site training and support to ensure proper application and optimal results.

Global Experience: KAIDA PAINT has successfully supplied bridge deck waterproofing systems for major infrastructure projects worldwide, from urban viaducts to long-span river crossings. Our technical team understands the unique challenges of different regions and project types.

Sustainable Solutions: By extending bridge deck service life and reducing maintenance interventions, the DurAcryl™ system contributes to infrastructure sustainability. Our manufacturing processes prioritize environmental responsibility with low-VOC formulations and efficient production methods.

Contact KAIDA PAINT today to discuss your bridge deck waterproofing requirements. Our technical team will provide comprehensive support from material selection through project completion, ensuring your bridge structure receives the protection it deserves.
